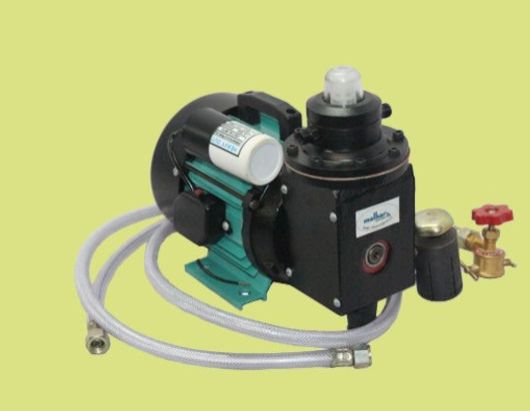

Lpg Transfer Pump

AC LPG Pump Techanical Specifications:

• Pump Type - AC (Electric supply) LPG Diaphragm  Pump
• Pump Make - “MALHAR”
• Pump Model - MD-AC-1
• Suction x Delivery Sizes - ¼ ” x ¼ ”
• Pump Capacity  - 15 kg/7 Minute I.E 2.14 kg/Minute
• Maximum Pressure  - 22 kg/cm²
• Pump Weight  - 16 kg approx

Material Of Construction :

• Standard Cast Iron Construction

AC Motor Specifications:
0.5 hp x 1450 rpm, Non Flame Proof Motor Totally enclosed Fan cooled Squirrel cage Induction Motors Horizontal Foot mounted B3 Construction, Contin
uously rated S1 Duty suitable for single phase , 220 volts, 50 Hz, AC Supply (110 volts or 60 Hz Available on request) with ambient 45ºc & class “F” Insulation.

Scope Of Supply:

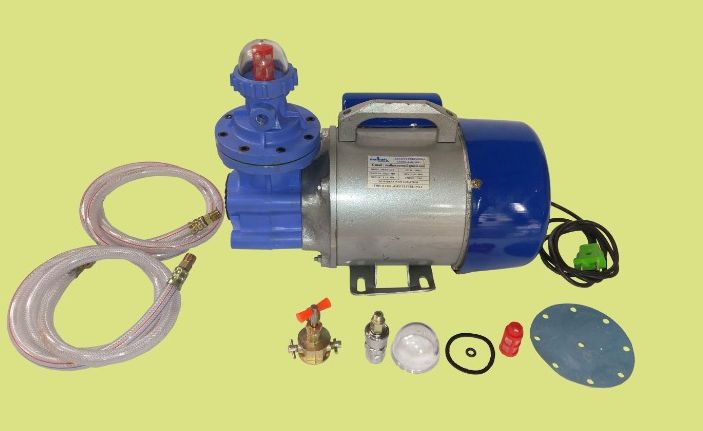

Ac lpg Pump  With Suction and Delivery Pipes with Valve, Regulator and extra Diaphragm.
