Fire Fighting Pump

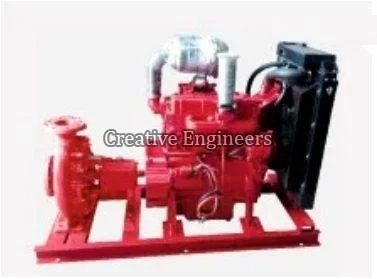

Leading Manufacturers, Exporters, Wholesaler and Retailer of Diesel Engine Pump, Fire Fighting Skid Mounting System, Jockey Pump, Monoblock Pump and Motor Driven Pump from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Usage/Application | Fire Protection In High-rise Buildings, Warehouses, Industrial Areas |
| Material | Corrosion-resistant Construction |
| Type | Diesel Engine Fire Fighting Pump |
| Power Source | Diesel Engine |
| Pump Types Available | Horizontal Split Case, Vertical Inline, End Suction, Vertical Turbine |
| Operation Type | Fire Fighting Pump |
| Key Features | Heavy-duty Diesel Engine For Consistent Power,Quick-start Mechanism For Emergency Activation,Corrosion-resistant Construction For Long Service Life,Suitable For Sprinkler Systems, Hydrants, |
At Malhar Pumps, we specialize in manufacturing high-performance
| Business Type | Manufacturer, Exporter, Supplier |
| Color | Red |
| Application | Industrial Use |
| Type | Fire Protection Systems |
| Country of Origin | India |
| Material | Steel |
| Finishing | Polished |

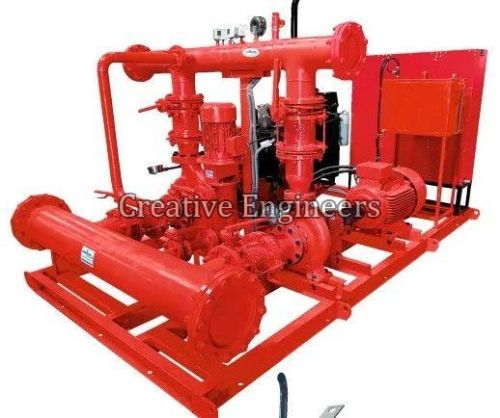

We are Leading Manufacturer of Fire Fighting Skid Mounting System
FIRE FIGHTING SKID MOUNTING SYSTEM Product OverviewWe are Leading Manufacturer of Fire Fighting Skid Mounting System
Material in skid:
This skid is made from following equipment’s:
- Main fire pump as per capacity and pressure given by customer or consultant
- Main fire pump with diesel or petrol engine ….
- Jockey pump
- Pressure switch and control panel
- Suction header with butter fly valves and flexible bellows
- Delivery header with NRV, butter fly valves, pressure switch, pressure tank (as and when required)
- Battery and its cable
- Cables between motor and control panel
Working principle:
Customer has to connect suction line with foot valve (we provide if required by customer) or direct connection in case of positive suction. customer has to connect delivery header to their firefighting pipes. now when pressure drop below 7 bar, jockey pump will start and maintain pressure in system, in case of fire if customer open any 1-inch valve of system, jockey pump starts and supply water with desired pressure, if customer open more valve or big valve, immediately main motor driven pump starts and throw water with pressure, however in case of fire some
| Business Type | Manufacturer, Exporter, Supplier |
| Pump Type | Horizontal/Vertical Centrifugal |
| Flow Rate | 1 - 20 M³/hr (Customizable) |
| Pressure Range | Up To 12 Bar (custom Fire Jockey Pump Pressure) |
| Motor Power | 0.75 - 5.5 KW |
| Operating Voltage | 220V / 415V, 50Hz (or As Per Requirement) |
| Material Of Construction | Cast Iron / Stainless Steel |
| Control System | Pressure Switch / Panel With Auto Control |
Trusted Supplier of Fire Fighting Jockey Pumps
We are a leading
| Business Type | Manufacturer, Exporter, Supplier |
| Power | 500W |
| Country of Origin | India |
| Type | Monoblock Pumps |
| Application | Petroleum, Oil And Gas, Refineries, Various Depots / Terminals And Installation, Various Offshore Installations, Hotels, Shopping And Housing Complexes All Over The Country, Commercial Complexes, High Rise Buildings, Airports And Ports, Oil And Gas On Sho |
| Driven Type | Electric |
| Automatic Grade | Semi Automatic |
We are Leading Manufacturer of Fire Fighting Pump
MONOBLOCK PUMP Product OverviewWe are Leading Manufacturer of Fire Fighting Pump
Application :
• Petroleum, Oil and gas,
• Refineries, various depots / terminals and Installation
• various offshore Installations.
• Hotels, Shopping and Housing complexes all over the country.
• Commercial Complexes
• High rise Buildings
• Airports and ports
• Oil and Gas on shore and off shore platforms
• Power stations and transformer stations
• Petroleum and petrochemical complexes
• Warehouses
• Manufacturing and chemical Industry
| Business Type | Manufacturer, Exporter, Supplier |
| Country of Origin | India |
| Type | Fire Fighting Pump |
| Application | Fire Fighting |
| Capacity | 3000 US GPM |
| Head | 348 PSI |
| RPM | AS Per Your Requirement |
| Frequency | 50 Hz / 60 Hz |
| Compliance | TAC Guidelines, UL, FM Global |
We are Leading Manufacturer of Fire Fighting Pump
MOTOR DRIVEN PUMP Product OverviewWe are Leading Manufacturer of Fire Fighting Pump
RANGE :
Capacity : 3000 US GPM,
Head : 348 PSI
RPM : AS Per Your Requirement
Frequency : 50 Hz / 60 Hz In India ,the pump manufacturers generally adhere to the TAC (Trariff Advisory Committee) Guidelines , Although pump manufacturers may also obtain listing with UL OR FM Globa
