Chemical Pump

HORIZONTAL HIGH PRESSURE MULTISTAGE CENTRIFUGAL PUMP
Pumps are single suction multistage segment centrifugal pumps which adopt energy-efficient hydraulic model, confirm to centrifugal pump technical condition with wide performance range, high efficiency, reasonable structure ,safe and steady operation, low noise, long life performance, easy installation and maintenance.
• Irrigation – Sprinkler Installations
• Water Supply
• Pressure Boosting – Multi stories buildings,   Hydro – Pneumatic
• Water Works Fire Fighting – Mining wash  down Applications
• Hydraulic press / Circuits transfer & circulation hot  & cold water
• Boiler feed pumps – Condensate pumps

OPERATING RANGE

•  Capacity :2500 LPM Maximum
•  Head : 400 Mtrs Maximum
•  Size : 1″ to 6″
•  Temperature : 140°c Maximum•

FIRE FIGHTING PUMP
A fire pump is a part of a fire sprinkler system’s water supply and can be powered by electricity, diesel or steam. The pump intake is either connected to the public underground water supply piping, or a static water source (e.g. tank, reservoir, lake). The pump provides water flow at a higher pressure to the sprinkler system risers and hose stand pipes. A fire pump is tested and listed for its use specifically for fire service (by a third-party testing and listing agency if required)

OPERATING RANGE

•   Capacity :2500 LPM Maximum
•   Head : 400 Mtrs Maximum
•   Size : 1″ to 6″•  Temperature : 140°c Maximum•
•   Capacity  : 3000 US GPM,
•   Head  :348 PSI,
•   RPM : AS Per Your Requirement
• Frequency  : 50 Hz / 60 Hz

MVGP” Series Vertical Glandless Pump

Glandless Pump Application

1. Water treatment Plant
2. Effluent Treatment
3. Filter Press for dyes and chemicals
4. Fertilizer Plants Thermal and atomic power plants
5. Drugs & Pharmaceutical Industries
6. Descaling of Tubes
7. Scrubbing of corrosive gases like Cl2  , Br , I, SO2  , NH3  , F2  Etc.
8. Excellent for vacuum ejectors
9. Transferring of concentrated HCL from road tankers
10. Paper & Pulp industries
11. Pickling in steel rolling mills
12. Caustic soda plants:Chlorinated brine, conc. HCL, H2SO4  etc. Other application are in metal refineries, pickling Installations, paper and fertilizer
13. plants-in fact all chemical process industries.
14. Phosphoric Acid Plants:H3PO4  , H2SO4  , HF and their mixtures with or without solid (gypsum) up to 40% conc.
15. Gas Washing Plants:Scrubbed liquids containing F, CL, SO2,
16. Ammonia gases etc. With solids replace hast alloy.
17. Rayon Plants:Spin bath solution (H2SO4 , ZNSO4  , NASO4  , etc.)

SALIENT FEATURES

1. No mechanical seal, stuffing box and internal bearings is needed
2. No maintenance since the pump can even run dry indefinitely as there is no packing, bushes or internal Bearings.
3. Reduction of downtime production losses in view of above features.
4. All the wet-end parts are in solid molded construction to with stand corrosion and erosion.
5. The impeller is semi-open type and used in our all-vertical pumps to suit both clear and polluted fluids.
6. Pump mounted outside the suction tank and is not submerged type.
7. Polypropylene is manufactured by solid injection molding process with high pressure

RANGE

1. PP 50º TO 80 º C PPH 90 º TO 100 ºC PVDF 100º TO 115ºC

MATERIAL OF CONSTRUCTION

1. CASTING: Top centreline discharge and integrated flanges, single piece, joint less casing formed out of Injection moulded polypropylene.
2. IMPELLER: Hydraulically balanced and accurately matched to casing profile, the semi open type impeller with practical shroud and glass finished smooth flow passage ensure high efficiency low NPSH performance Impeller made from compressor moulded U.H.M.W
3. EXPLORER: Made from U.H.M.W
4. OVER FLOW BODY: Heavy duty, one piece, joint less design made from compressor moulded U.H.M.W
5. SHAFT: The shaft is made from SS 316 protected by shaft sleeve of U.H.M.

Are you Looking for Polypropylene Pump Manufacturers in India? Creative Engineers is a leading manufacturer, supplier, and exporter of horizontal polypropylene pumps based in Ahmedabad, Gujarat, India. With a commitment to innovation and quality, we specialize in designing and manufacturing high-performance polypropylene pumps that cater to diverse industrial applications. Our pumps are known for their durability, efficiency, and reliability, making them ideal for handling corrosive and abrasive fluids in various industries including chemical processing, pharmaceuticals, wastewater treatment, and more. Backed by a team of skilled professionals and state-of-the-art facilities, we ensure stringent quality control measures at every stage of production to deliver products that exceed customer expectations.

APPLICATION

1. Water Treatment Plant
2. Effluent Treatment
3. Filter Press for Dyes and Chemicals

 HORIZONTAL POLYPROPYLENE

1. Fertilizer Plants Thermal and atomic power plants
2. Drugs & Pharmaceutical Industries
3. Descaling of Tubes
4. Scrubbing of corrosive gases like Cl2, Br, I, So2, NH3, F2 Etc.
5. Excellent for vacuum ejectors
6. Transferring of concentrated HCL from road tankers
7. Paper & Pulp industries
8. Pickling in steel rolling mills
9. Electro Plating
10. Caustic soda plants: Chlorinated Brine, Conc. HCL, Dilute H2SO4, etc.
11. Chlorinated Brine, Conc. HCL, Dilute H2SO4 etc.
12. PHOSPHORIC Acid Plants: H3PO4, H2SO4, HF and their mixtures with or without solid (gypsum) up to 40% conc.
13. Gas Washing Plants: Scrubbed Liquids containing CL2, BR2, F2, I2, SO2, SO3, CO2, NH3, Gases, etc. with solids replace Hast Alloy.
14. Rayon Plants: Spin bath solution (H2SO4, ZNSO4, NaSo4, etc.)

MATERIAL OF CONSTRUCTION

1. CASING: Top centerline discharge and Integrated flanges , Single piece, joint less casing formed out of Injection-molded polypropylene / PVDF / UHMWPE.
2. IMPELLER: Hydraulically balanced and accurately matched to casing profile, the semi-open type impeller with particle shroud and glass finished smooth flow passage ensure high-efficiency low NPSH Performance Impeller made from compressor molded polypropylene PVDF/UHMW.
3. SHAFT: The shaft is made from SS 304 protected by shaft sleeve of alloy -20 or alumina field Teflon or ceramic.
4. BEARING HOUSING: Made from heavy-duty graded casting.
5. BEARING: SKF Ball Bearing
6. MECHANICAL SEAL: Rotary part of the seal is made from glass field Teflon & Stationary part of the seal is made from high alumina field ceramic.
7. DISTANCE PIECE: Heavy-duty one-piece injection-molded polypropylene.

RANGE

1. Head-Up To: 60 meters
2. Pump size: 25 mm to 150 mm
3. Capacity: 180 M3/hr
4. Speed: 1440/2880 rpm at 50 Hz &
5. 1750/3500 rpm at 60 Hz
6. Temperature: up to 110c

 TEMPERATURE RESISTANCE

1. PP 50 TO 80c
2. PPH 90 TO 100c
3. PVDF 100 TO 115c

Rubber Lined Pump Application

1. Hydraulic Acid at all Concentrations
2. Dilute Sulphuric Acid
3. Pigment Slurries
4. Lime Slurry / Milk of Lime
5. Phosphoric Acid Solutions
6. Paper Stock
7. Industrial effluents
8. Ore Slurries
9. Acidic Slurries
10. Abrasive Slurries
11. Sea Water

Rubber Lined Pump Operating Range

1. 10 M3/hr  – 40 M3/hr
2. Head-Up to 20 meters
3. Liquid Column

(Higher Models Available on Request.)

For Abrasive Liquids:

1. Suspension with fine abrasive solids
2. Up to 3 mm slurries, Calcium Hypochlorite, Potassium Hypochlorite, Copper Ox chloride,
3. Iron Ore Slurry, Coal Ash Slurry, River-Bed Gravel Abrasive Silt.

PTFE LINED PUMPS

FLUORO-POLYMER LINED-PVDF/FEP/PFA LINED These pumps are designed for handling of most served industrials duties & available in a variety of lining materials to suit different requirements involving highly aggressive media at elevated temperature. This pump has excellent chemical as well as temperature resistance similar to PTFE & is cost-effective alternative to expensive metals & alloys like hast alloy, tantalum, nickel, etc.

The wet parts of the pumps are lined with following fluoro-polymers.

1. PVDF (Polyvinylidene fluoride)
2. FEP(Fluorinated ethylene propylene )
3. PFA (Perfluoroalkoxy)

OPERATING RANGE

1. Permits applications all aggressive, corrosive or toxic media
2. Up to 200°c with or without abrasive slurries
3. Max Head:  Up to 100 MWC
4. Max Capacity:  Up to 200 M3/hr

APPLICATIONS & USER INDUSTRIES
Ideal for the transfer of corrosive chemicals, plating chemicals, acids, dyes, solvents, toxic & fuming liquids, petrol, kerosene, etc. Useful in chemical industries, pharmaceuticals, and food processing industries. Electroplating, Galvanizing / Anodizing plants. Laboratory equipment and  PCB  plants.  Medical equipment and X-Ray film plants. Textile Dyeing houses. Liquid dispensing machines and Chemical Filtration equipment.  For hazardous duty conditions with flameproof motors.High Efficiency due to permanent magnet power coupling.

ADVANTAGEOUS FEATURES
100% Leak Proof pumps due to a magnetic drive arrangement. No shaft seal is used which automatically solves the problem of seal leakage and wear & tear. Friction free operation for reduced power consumption. High power permanent magnets ensure full power transfer and eliminate slippage. All pumping parts are Non-metallic, Which gives superior corrosion resistance, Simple and easy to operate, has Long life, is reliable and has trouble free operation

RANGE

1. Capacity:  from 10 LPM up to 750 LPM
2. Head: upto 40 mtrs.
3. The material of Construction: Poly Propylene Glass Filled , PVDF upto 110 Deg C  & SS-316
4. Operating Temp: PP upto 80 deg C , PVDF upto 110 deg C Special Pumps for high temperature upto
5. 150ºC and 250ºC for SS-316

THERMIC FLUID PUMP

These pumps are normally made from WCB/SS Material which is able to withstand with a high-Temperature application and hot oil transfer in the boiler. Our pumps are suitable for both organic and inorganic fluids and used in oil refineries, food, chemical, textile industries, and seawater desalination plants. These pumps are equipped with water/self-cooling feature that makes them suitable for the applications in heat transfer plants and handling of organic heat transferring of oils. In compliance with the latest industry standards, these pumps are designed with heavy-duty bearings.

OPERATING RANGE

1. Capacity: up to 250 M3/hr
2. Temperature: up to 350ºc
3. TDH: up to 95 mlc
4. Working Pressure: up to 20 Bars
5. Delivery Size: up to 100 mm
6. Speed: 960/1450/2900 rpm.

HORIZONTAL SPILT CASING PUMP
FEATURES

1. Horizontal and vertical Execution and Centre Line Suspension
2. Gland Pack / Mechanical Seals
3. 3 stage HSC Pump with Head up to 170 mtrs and flow up to 350 m3/hr for Condensed Extraction.
4. Bush Bearing arrangement
5. Bearing Cooling  arrangement
6. High head pumps have Double Volute Casing
7. Two stage pump-single entry closed type with Impellers Back to Back
8. Capacity up to 18000m3/hr
9. Head up to 270m

APPLICATION

1. Water supply
2. Building Services
3. Circulating Water Systems
4. Paper Mills
5. Water / Effluent Treatment
6. Pharmaceuticals
7. Irrigation
8. Sugar Mills
9. Ports and Docks
10. Vegetable Oil Mills
11. Air Conditioning
12. General Industry Requirements
13. Fire fighting

IN-LINE CENTRIFUGAL PUMP
OPERATING RANGE

1. “MALHAR” Volute casing IN-LINE centrifugal pumps Type
2. RIL is space-saving pump units designed for easy installation and used generally for circulating clean non-aggressive fluids.
3. Water supply Systems
4. Water circulation /Transfer
5. Hot water Circulation
6. Agriculture
7. Industry
8. Ship Building
9. Cooling Towers
10. And many other Applications
11. Horizontal and vertical Execution and Centre
12. Capacity: up to 280M3/hr
13. Head: up to 95 mtr
14. Higher capacity and available on request
15. Material of Construction: CI/Bronze/SS Etc

OIL SEAL HIGH VACUUM PUMP

APPLICATIONS:

1. Dehydration and filtration processes/freeze-drying of foods.
2. Exhausting Electronic Tubes/ Mercury Vapour Lamps and Tubes
3. Vacuum metallurgy / Vacuum Sublimation
4. Vacuum impregnation / Thin film coating
5. Refrigerator and Aircon

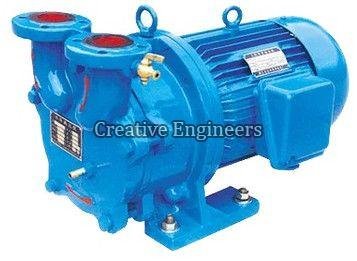

WATERING VACUUM PUMP & TWO-STAGE WATERING VACUUM PUMP

APPLICATIONS:

1. Dehydration & Filtration Processes
2. Distillation, Evaporation & Drying
3. Deodorization, Evacuation, Sterilizing
4. Conveying, Venting & Sucking
5. Moisture Extraction, Concentration
6. Laboratory Usage / Priming Purpose
7. Pilot Plants / Filtration Process / Drying

MONOBLOCK WATERING PUMP

RANGE

1. Capacity: 24M3/hr to 330M3/hr
2. Vacuum: 710 mm of Hg
3. Power: 1hp – 15hp
4. RPM: 1440/2900

SINGLE STAGE / DOUBLE STAGE PUMP

RANGE

1. Capacity: 50M3/hr to 330M3/hr
2. Vacuum: 710 mm of Hg
3. Power: 3 HP TO 5

DIRECT DRIVE ROTARY HIGH VACUUM DOUBLE STAGE PUMP
APPLICATIONS:

1. Gas charging in ACS and Refrigerators / Car AC Servicing
2. Laboratories / Research & Development units
3. High Vacuum systems / Scientific Equipments
4. Food Processing Units / Printing and film Processing
5. Air Sampling / Environmental Studies / Vacuum forming
6. Electronic & Electrical Industries

RANGE

1. Capacity: 50-500 lpm
2. Power:  1/4″ Hp to 1HP
3. RPM: 1440/2900

OIL LUBRICATED ROTARY VANE VACUUM PUMP
These models are quite versatile and find their applications in Pharmaceutical & Chemical Industries for Distillation, Evacuation & Filtration and are suitable for a host of other general Vacuum applications like Holding, Conveying, Glass Blowing, Lamination, Labeling, Paper Feeding, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing & Food Processing, etc

RANGE

1. Capacity  Free Air Displacement: 150 – 1500 lpm,
2. Ultimate Vacuum MM OF Hg : 0.150
3. Motor Hp Range: 0.5 hp – 5 hp
4. RPM: 1440/2900

ROTARY VANE TYPE VACUUM-PRESSURE PUMP
These models are quite versatile and find their applications in  Pharmaceutical  &  Chemical  Industries  for  Distillation, Evacuation & Filtration, Paper feeding in Printing Machines and   is   suitable   for   host   of   other   general   Vacuum Applications   like   Holding,   Conveying,   Glass   Blowing, Labeling, Vacuum Forming, Blister Packing, Bottle Filling, Vacuum Sealing , Food Processing & Milking Machines etc.

RANGE

1. Capacity Free Air Displacement: 100 – 2000 lpm
2. Ultimate Vacuum MM OF Hg: 650-700
3. Motor Hp Range: 0.25 hp – 7.5 hp
4. RPM: 1440

DIAPHRAGM VACUUM PUMP

APPLICATIONS

1. Oil-free air and maintenance-free operation as no lubrication is required. Practically Noiseless operation.
2. Available with 24 v / 48 v DC or 110 v / 230 V AC Supply voltage.
3. Available with Chemical resistant parts made from PP / PVC / SS.
4. Available as Single Stage / Double stage / Double stage Parallel Operation pumps.
5. Standard Models are with Aluminum contact parts.

APPLICATION

These pumps are in extensive use in the fields of

1. Pollution Control
2. Filtration.
3. Transferring Corrosive Chemicals
4. Slurries
5. Biogas plants
6. Sewage
7. Wastewater treatment plant.
8. Phosphoric Acid Plant. H, PO, H2SIFs, H2SO4, HF and Their Mixtures
9. Gas washing plant
10. Scrubbed liquids containing, F, Cl, SO2, Ammonia
11. Water treatment plant
12. Any types of acidic water lifting

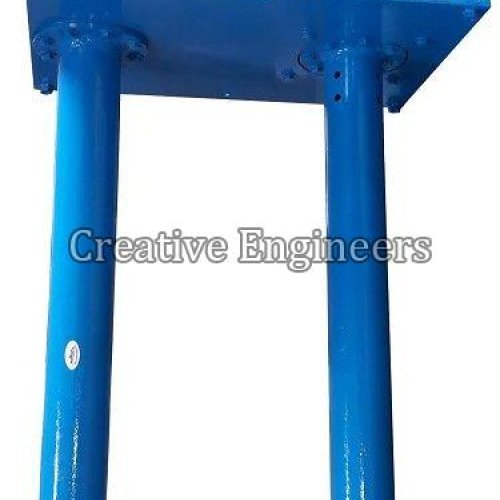

13. M.S Vertical pump are used for the transfer of sulphuric acid 98 %. OLUM, CLOTO, NEPTHA

High-Temperature Services:

The maximum working temperature is 110oC / 200oC.

Length:

Pump lengths available from 1′ to 12′ with flow rate up to 50M3/h or 120-meter head. Higher capacities and head available on request and even multistage pump can be also made.

Models:

Available in the conventional or tailor-made configuration. Several models such as suction extension with float switch, duplex pumping station with float switch(auto on/off the device) are also available.
