Barrel Drum Pump

• Made from Cast Iron / ss as per customer’s requirement.

• Work in any position Vertical / Horizontal Upside down

• Very Easy Installation

• Made from 4 parts only

• Liquid of any viscosity can be used

• Diaphragm is of PTFE Material

• Capacity : Per Rotation 150 ml

“MALHAR” Barrel pumps works in reciprocating action. Barrel pump is useful for safe and efficient handling of highly corrosive chemicals, solvents, acids, petroleum products diesel oil, and fuel oils, plating solution, toxic chemicals etc. It eliminates danger of spillage explosion hazards. Construction of MALHAR Pump is such that operating compressed air never gets in contact with pumped liquid. The pump can be directly inserted in to the barrel threading provide on the pump adapter. It sucks the liquid from the bottom and hence less chances of leftover material. It does not have any type of motor and hence virtually zero maintenance.

• Stainless Steel Pneumatic Transfer Pump for Food syrups, Ketchup, Flammable Media,

• Chemicals, Paint, Liquid Media with Fillers, Fuel

• Flow rate – 70 liter per minute

• MOC – SS 316

• Inlet diameter – 40

• Outlet diameter – 25 mm

• Air Hose diameter – 8 mm

• Safety Valve Pressure – 0.03 Mpa

• Air Pressure – 0.1 Mpa

• Length of the Pump – 1.12 meter

• Length of the tube – 1 meter

• Head – 15 meter

• Weight – 6 kg

• Filter Gauge supplied as free accessories

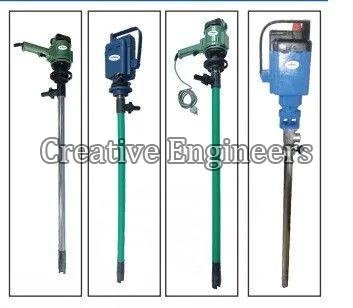

Capable of pumping and discharging water, oil and bottom sludge. And also any explosive material can be sucked when the pump is properly grounded.

• Outer Pipe Dia meter : Ø40 mm
• Outlet Size : 20 mm (3/4”)
• Power : 0.88 kw
• Speed : 10000 RPM,
• Voltage : 220v , 50 Hz
• MOC : Aluminium / PP / SS-316 / PTFE
• Shaft : MS / Alloy-20 / SS
