SS Centrifugal Pump

APPLICATION

1. Milk, Cream, Butter Milk, Condensed Milk
2. Fruit juice, Beer, Wine, Sugar Syrup
3. Vitamin Solutions, Sugar & Confectionery.
4. RO Water, DM Water, Pure Water. Water for Injection (WFI)
5. Vegetable Oil, Mineral Oil, Lub Oil etc.
6. Pharmaceutical Formulations, Syrup etc.
7. Alkaline Solution / Alcoholic Drinks.
8. Acids, Fine Chemicals
9. Bottling Plants, Soft Drinks & Distillery
10. Food Processing / Liquid Food Stuffs
11. Colour dyes and Pigments / Paints
12. Descaling Applications, Paper & Cement Industries
13. Water Treatment Plants
14. Detergent, Soaps, Paste & Shampoo
15. Textile Sizing, Dyeing & Finishing Systems
16. Natural Cellulose Fiber / Synthetic Fiber System
17. Hot & Cold Water Pumping

FEATURES

1. As all pumps are made from rolled stainless steel, mechanical properties are far superior than cast material.
2. Pore free, non-pitting and non-adhering smoother surface, so lesser friction losses, and lesser service corrosion.
3. Super finished surface also ensures no ingress or emission of germs or impurities during pumping or idling which is a basic requirement of sterile / hygienic application.
4. Pump can handle liquids having viscosities up to 1500 centipoises.
5. Pumps are highly energy efficient and requires lesser NPSH to function without cavitation.
6. The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
7. Pumps are available with cosed/semi open impellers.
8. The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
9. Minimum working / rotating parts.
10. Safe and quiet operation levels.
11. Gentle product handling with lower maintenance and downtime cost.
12. Dynamic combinations of seal faces as per customer’s requirement (single seal / double seal, seal external cooling ).
13. Suitable for standard motor or flange type or foot cum flange type motor or engine
14. Monoblock or bare pumps or with trolley.
15. Also with flame proof motors.
16. Various types of connection like – tri’clove joints SMS, flanges or threaded nipple/coupling.
17. Pumps with adjustable legs, available on request.
18. Special bearing for hot water application available on request.

RANGE

1. Size: 12 MM TO 100 MM
2. Head: 03 Meters to 76 Meters
3. Capacity: Up to 1890 Lpm

Motor HP: 0.25 HP TO 30 HP

• Head : 04 Meters to 80 Meters

• Capacity : 04 Lpm TO 2000 Lpm

• Casing : AISI 316 / 316L / 304L / 304

• Impeller : AISI 316 / 316L / 304L / 304

• Wear Plate : AISI 316 / 316L / 304L / 304

• Shaft : AISI 316 / 316L / 304L / 304

• Seal : TC/TC , SIC/SIC , SS/Carbon or even seal in special application

• Motor Cover : SS-304 / SS-202 / SS-316

• Gasket : Viton / Nitrile / Silicon / PTFE

APPLICATION

1. Milk, Cream, Butter Milk, Condensed Milk
2. Fruit juice, Beer, Wine, Sugar Syrup
3. Vitamin Solutions, Sugar & Confectionery.
4. RO Water, DM Water, Pure Water. Water for Injection (WFI)
5. Vegetable Oil, Mineral Oil, Lub Oil etc.
6. Pharmaceutical Formulations, Syrup etc.
7. Alkaline Solution / Alcoholic Drinks.
8. Acids, Fine Chemicals
9. Bottling Plants, Soft Drinks & Distillery
10. Food Processing / Liquid Food Stuffs
11. Colour dyes and Pigments / Paints
12. Descaling Applications, Paper & Cement Industries
13. Water Treatment Plants
14. Detergent, Soaps, Paste & Shampoo
15. Textile Sizing, Dyeing & Finishing Systems
16. Natural Cellulose Fiber / Synthetic Fiber System
17. Hot & Cold Water Pumping

FEATURES

1. As all pumps are made from rolled stainless steel, mechanical properties are far superior than cast material.
2. Pore free, non-pitting and non-adhering smoother surface, so lesser friction losses, and lesser service corrosion.
3. Super finished surface also ensures no ingress or emission of germs or impurities during pumping or idling which is a basic requirement of sterile / hygienic application.
4. Pump can handle liquids having viscosities up to 1500 centipoises.
5. Pumps are highly energy efficient and requires lesser NPSH to function without cavitation.
6. The pumps can work under a vacuum of 720 mm of Hg, suitable for vacuum evaporators.
7. Pumps are available with cosed/semi open impellers.
8. The best elastomers are used in the pumps to provide optimum resistance for high temperatures and chemicals.
9. Minimum working / rotating parts.
10. Safe and quiet operation levels.
11. Gentle product handling with lower maintenance and downtime cost.
12. Dynamic combinations of seal faces as per customer’s requirement (single seal / double seal, seal external cooling ).
13. Suitable for standard motor or flange type or foot cum flange type motor or engine
14. Monoblock or bare pumps or with trolley.

APPLICATION

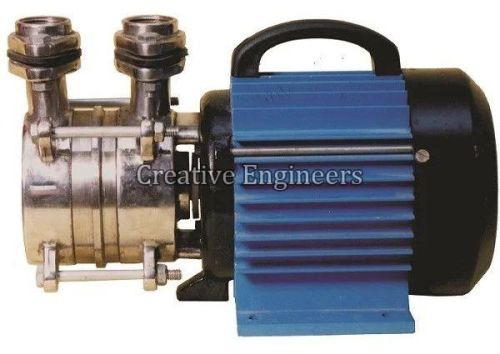

1. Creative engineers now introduces self priming pump manufacturer with closed and semi open impeller .
2. We have made SS-304 or SS-316 chamber in round shape or in square shape .
3. These chambers are interconnected with casings, casings have flap type or disc type non return valve (NRV) depend upon application . We use  flap type NRV when liquid is dirty or containing some solid particles . We use  disc type check valve when liquid is crystal clear.
4. These NRVs hold liquid in the chamber and centrifugal pump works as self priming pump.
5. All weted parts are made from SS-304 or SS-316 sheet only and chambers are tested with hydraulic test up to 10 bar . If more pressure is needed, than we test at 1.5 times the shutoff pressure. Thickness of sheet depends upon size and pressure of the system .
6. These pumps are ideal for all applications where people do not want to use footvalve or have suction problem .
7. Size of self priming chamber depend upon capacity and suction length .
8. We also offer openable chamber so one can clean it very easily.
9. This is required in sanitary application and in some sticky material application.
10. All our CF series pumps  are now available with such chamber in monoblock or bare version.
11. All our mud pumps which is comparatively costly in SS castings are now offered in our new
12. SPCF version with open or semi open impellers .

OPERATING RANGE

1. Size: 12 MM TO 100MM
2. Head: 03 METERS TO 76 METERES
3. Capacity : UP TO 500 M3/HR

“MSP” SERIES SELF PRIMING CUM CENTRIFUGAL TYPE MUD PUMPS

APPLICATIONS

1. Sewage and Effluent treatment plants.
2. Low NPSH process circulation duty.
3. Aboard ships as bilge, deck wash pump & engine cooling pump.
4. Loading, Unloading and transfer of tricky liquids viz. oils, solvents, gas oils, minerals, oils, grease, petrol, seawater etc.

OPERATING RANGE

1. Capacity: up to 350 M3/hr,
2. Head: Up to 60m
3. Suction Head: Up to 8 meters.
4. Material: Cast Iron  & Bronze,
5. Solids: Up to 41 mm dia.
6. Viscocity: Up to 100mm²/sec.

Casting pumps are typically made from durable materials such as cast iron, stainless steel, or aluminum, which are resistant to corrosion and chemical attack. This makes them suitable for use with a wide range of fluids, including water, oil, and chemicals.

These pumps work by using a motor or engine to power an impeller, which creates suction that draws fluid into the pump housing. The fluid is then forced out through a discharge hose or nozzle, allowing it to be transferred to another location or used in a process or application.

Casting pumps are known for their reliability, efficiency, and ease of use. They are available in a wide range of sizes and configurations to suit different applications, and can be made from a variety of materials to handle different fluids and operating conditions.

APPLICATION

1. High Efficiency and High Discharge rate at less power consumption.
2. Casing and Impeller are made of SS 316
3. Anticorrosive stainless steel shaft.
4. The impeller is dynamically balanced for low noise and longer bearing life.
5. Long-life due to replaceable wearing parts.
6. Easy spares availability
7. Suction lift up to 8 meters.
8. Extremely simple in construction, Easy Maintenance, and Easy gland packing replacement.
9. Available in various pipe sizes.
10. Sealing arrangement with a mechanical seal is standard supply, gland packing arrangement available on request.
11. Mechanical seal with Carbon – Ceramic with S.S. Spring.
12. Gland Packing (if fitted with) PTFE.
13. SCFZ Series suitable for B5 TYPE IEC Motors.
14. All models are available in 60 Hz on request.

Range
1. Pressure: Up to 2.5 Kg/Cm
2. Discharge: 100 LPM to 600 LPM
3. Pipe Size: 25 x 25 mm to 50 x 50 mm
4. Power Rating: 0.5 hp to 3 hp

FEATURES:
Vertical Centrifugal process pump can be used in any installation and especially where the saving of space is an important factor or where liquid is difficult to lift because of nature like temp, corrosiveness etc these pumps are designed for use where the liquid to be handled is of highly corrosive Nature or where non – adherence of product or zero metallic contamination is must. These pumps are equally ideal for continuous or intermittent service for handling Corrosive as well as ultra-pure chemicals without fear of corrosion or contamination

APPLICATION

These pumps are in extensive use in the fields of

1. Pollution Control
2. Filtration.
3. Transferring Corrosive Chemicals
4. Slurries
5. Biogas plants
6. Sewage
7. Wastewater treatment plant.
8. Phosphoric Acid Plant. H, PO, H2SIFs, H2SO4, HF and Their Mixtures
9. Gas washing plant
10. Scrubbed liquids containing, F, Cl, SO2, Ammonia
11. Water treatment plant
12. Any types of acidic water lifting
13. M.S Vertical pump are used for the transfer of sulphuric acid 98 %. OLUM, CLOTO, NEPTHA

High-Temperature Services:

The maximum working temperature is 110oC / 200oC.

Length:

Pump lengths available from 1′ to 12′ with flow rate up to 50M3/h or 120-meter head. Higher capacities and head available on request and even multistage pump can be also made.

Models:

Available in the conventional or tailor-made configuration. Several models such as suction extension with float switch, duplex pumping station with float switch(auto on/off the device) are also available.

VERTICAL MULTISTAGE IN-LINE CENTRIFUGAL PUMP

1. Vertical multistage centrifugal pumps type MC are designed for a wide range of applications.
2. Water supply systems.
3. Water Circulation / Water Treatment Plant
4. Hydro Pneumatic Systems / Condensate transfer.
5. Agriculture / Industrial Washing
6. Coolant Circulation.
7. Boiler Feeding / Fire Fighting / Booster Applications.
8. Ship Building / RO-DM Plants / Sprinkle irrigation.

MOTOR OPTION

Standard pumps are fitted with motor adaptor suitable for mounting Vertical Flange Mounting V-1 frame Motor, Special motor adaptor can be provided to suite other specification. The pumps is coupled with a Electric motor, which is totally enclosed , fan cooled Squirrel cage motor. Single-phase Motors have a built thermal overload protection. Three phase motors should be protected by a suitable motor starter as per local regulations.

 RANGE

1. Range: Up To 4” Outlet Size
2. Maximum Head: 280 Meter
3. Maximum Capacity: 90M3/hr
4. Can Handle Liquids Up To 120ºC
