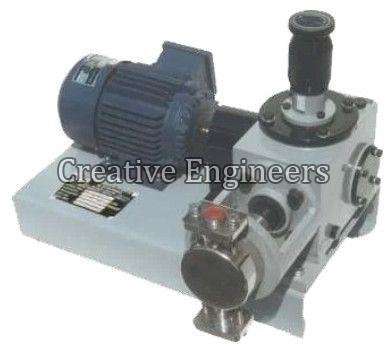

High Pressure Plunger Pump

• HIGH PRESSURE PLUNGER PUMP

“Malhar” High-Pressure (simplex / duplex / triplex / sixplex ) plunger pump is a positive displacement pump. which can deliver a high flow stream at high pressure with high efficiency. These pumps are also known as hydro test pumps, pressure test pumps, hydrostatic test pumps.

OPERATING RANGE

1. Flow Range: Up to 30,000 LPH
2. Pressure Range: Up to 1000 Kg / Cm2
3. Temperature Range: 30oC / TO 300oC
4. M.O.C: AISI 316, AISI 304, AISI 410, CS,
5. ALLOY-20, HASTELLOY C &  B, TITANIUM, MONEL, ETC
6. Wet And Cartridge : Single / double-acting(simplex / duplex / triplex / pentaplex)plunger
7. Valve: Ball, Cone, Plate, Wing with or without spring-loaded
8. Gland Packing: U seal (PTFE, CHEVRON, PU) / Square rope.
9. Options: Pressure relief valve, Pulsation Damper, Instrumentation, and automation, completer Pumping  systems

APPLICATION

1. Airport & Ship Yards.
2. Railway Workshop & Cleaning Yards.
3. State Transport & Workshop.
4. Industrial & Agriculture Purpose.
5. Auto Two & Four Wheel Workshop for washing /cleaning application.
6. RO water and seawater high-pressure application.

• DOSING-METERING PUMPS & DOSING SYSTEM

Dosing- Metering Pump is a single-acting reciprocating type positive displacement controlled volume pump that can deliver flow streams at adjustable & controlled rates in required process conditions. These pumps are also known as injection pump, feed pump, proportioning pump, leak-less pump.

APPLICATION

1. Water treatment chemical dosing.
2. Effluent-Sewage treatment chemical dosing.
3. Chemical – Solution preparation and metering package
4. Corrosion Inhibitor dosing.
5. Odorizing Injecting systems.
6. Additive or catalyst injection package
7. Hp-Lp dosing systems for boilers
8. Polymerization additives
9. Preparing-cleaning-Disinfecting solution dosing for CI

OPERATING RANGE

1. UP to 1000 LPH
2. Max Pressure 150 Bar
