Flow Meters
Leading Manufacturers, Exporters, Wholesaler and Retailer of Electromagnetic Flow Meter, Gas Turbine Flow Meter and Ultrasonic Flow Meter from Ahmedabad.
| Business Type | Manufacturer, Exporter, Supplier |
| Material | : SS 316 (Non - Magnetic) |
| Analog Output | 4-20 mA / DC / 0-20 mA DC |
| Liner | PTFE / Neoprene / Polyurethane |
| Electrode | SS / Hostelloy C / Ta / Ti / PL |
| End Connection / Flanges | Carbon steel / SS 304 / SS 316 / SS 316L |
| Coil Housing | Carbon steel / SS, Epoxy painted |
| Transmitter | Cast aluminum (Lm6), Epoxy painted |
| Power supply | 110 / 240 V AC + 15 % 50 Hz |
| Power consumption | 20 VA |
| Communication port (Optional) | RS -23 / RS - 485 MODBUS RTU protocol |
“TORQUR” make series 6400 (Full Bore Type) are new range of Bipolar Pulsed DC Full Bore type Electromagnetic flow meters. It is suitable for pipes with nominal diameters of DN 10 to DN 600. They are based on faraday’s law of Electromagnetic Induction. The series 6400 meters features flanged construction and is available with choice of liner and electrode materials. Series 6400 has excellent accuracy and flow range ability. The meter is suitable for use on wide range of corrosive and aggressive range of conductive liquids.
Available for pipe sizes Range : DN 10 to 3000
APPLICATION
• Water Supply Networks, Chemical, Petrochemical and Process Industries (Only Conductive Liquids)
• Pharmaceutical Industries / Paper and pulp Industries / Fertilizer Industries / Beverage Industries
• Waste - Water management , Sugar, Food, Drug and Beverages Industries
• Effluent Treatment Plants, Aluminum, Steel, Mining and Dredging Industries
SPECIFICATION
• Suitable for pipe sizes : DN 10 to DN 2000
• Media Conductivity (Min) : 10 us / cm (Consult factory for 5 us/cm)
• Media Pressure : PN 40 up to DN 80, PN 16 upto DN 200 & PN 10 up to DN 600
• Media Temperature (PTFE) : 0"-180c with remote transmitter
0"-120c with integral transmitter
0"-90c max for other Liners
• Material : SS 316 (Non - Magnetic)
• Liner : PTFE / Neoprene / Polyurethane
• Electrode : SS / Hostelloy C / Ta / Ti / PL
• End Connection / Flanges : Carbon steel / SS 304 / SS 316 / SS 316L
• Coil Housing : Carbon steel / SS, Epoxy painted
• Transmitter : Cast aluminum (Lm6), Epoxy painted
• Power supply : 110 / 240 V AC + 15 % 50 Hz
• Power consumption : 20 VA
• Analog Output : 4-20 mA / DC / 0-20 mA DC
• Communication port (Optional) : RS -23 / RS - 485 MODBUS RTU protocol
• Response time : 5 second
• Flow velocity Range : 0.3 to 10 m/s
• Ingresss Protection : IP - 65 (IP 68 on request)
• LED Display : 4 Digit Indication for flow rate and 8 digit
indication for Totaliser programming
from keyboard for engineering unit
Accuracy : 0.5 % of measured value (calibrated) at
eference conditions
• Accuracy : 2 % of span
• For flow Between 0 to 100 % : Refer Error Diagram
• Reference Conditions
• Power Supply : Nominal
• Ambient Temperature : 25 + 2c
• Load Resistance : 500
• Repeatability : + 0.2% of span
• Effect of Ambient Temperature : Less then 0.2% per 10c
• Effect of power supply : Less then 0.1% per
• 10% Voltage Variation
• Effect of Load Resistance Less than 0.1% of span
| Business Type | Manufacturer, Exporter, Supplier |
| Material | Various Materials Suitable For Gas Flow Measurement |
| Accuracy | +0.20 % |
| Application | Gas,Steam,Liquid,Gas Flow Measurement In Various Industries |
| Type | Gas Turbine Flow Meter |
| Pipe Sizes Range | DN 15-DN 1000 MM |
| Measuring Range | 0-150 T/H |
We are Leading Manufacturer of Gas Turbine Flow Meter, Mass Flow Meter, and Vortex Flow Meter in India
Gas Turbine Flow Meter, Mass Flow Meter, Vortex Flow Meter Product OverviewGAS TURBINE FLOW METER “TORQUE” Make Gas turbine flow meter (flow transducer) is a high accuracy flow sensor. It can be widely used in the fields of are, natural gas and other gas to be measured. Several output and display methods can be selected. Available for pipe sizes Range : DN 15-DN 1000 MM
APPLICATION
The standard turbine meter is suitable for custody transfer gas measurement of all non-corrosive gases such as natural gas, propane, butane, air, nitrogen, hydrogen, etc. for low and high operating pressures. Special constructions can be supplied for use under extreme condition like high temperatures or corrosive gases.We can modify to perform as a master meter or transfer master meter.
MASS FLOW METER
A mass flow meter, also known as an inertial flow meter is a device that measures mass flow rate of a fluid trovelling through a tube. The mass flow rate is the mass of the fluid traveling past a fixed point per unit time. The mass flow meter does not measure the volume per unit time (e.g., cubic meters per second) passing through the device; it measures the mass per unit time (e.g., kilograms per second) flowing through the device. Volumetric flow rate is the mass flow rate divided by the fluid density. If the density is constant, then the relationship is simple. If the fluid has varying density, then the relationship is not simple. The density of the fluid may change with temperature, pressure, or composition, for example. The fluid may also be a combination of phases such as a fluid with entrained bubbles. Actual density can be determined due to dependency of sound velocity on the controlled liquid concentration.
Measuring Range : 0-150 T/H , Accuracy : +0.20 %
APPLICATION
Oil/Petrol/Diesel & All Liquids where High accuracy is required
VORTEX FLOW METER
A Columnar object is inserted into the fluid. Regular eddies occur alternately on both side of the columnar object. This kind of eddy is called as Kaman vortex. The occurrence frequency is proportional to the flow velocity of liquid, so the vortex frequency is detected by piezoelectric sensor, and the flow rate of fluid may be calculated through the sensor.
APPLICATION
- Gas
- Steam
- Liquid
| Business Type | Manufacturer, Exporter, Supplier |
| Type | Portable And Fix Type |
| Certification | ISO-9001:2008 Certified |
| Usage | Flow Surveys, Closed Pipe Applications, Power Plants |
| Range | DN 15 MM-DN 4500 MM |
| Application | Ideal For Flow Surveys And Closed Pipe Applications |
| Suitable For | Liquids, Gases, Steam Applications |
| Pressure | Up To 100 Bars |
| Components | Orifice Plate, Transmitter, Impulse Piping |
| Manufacturer | India |
| Supplier | Ahmedabad, Gujarat, India |
We are Leading Manufacturer of Ultrasonic Flow Meter, and Pressure Differential Meter in India For over 29 years, We have been offering ISO-9001:2008 certified ultrasonic flow meters. We have a range of ultrasonic flow meter and pressure differential meter manufacturers & suppliers in Ahmedabad, Gujarat, India

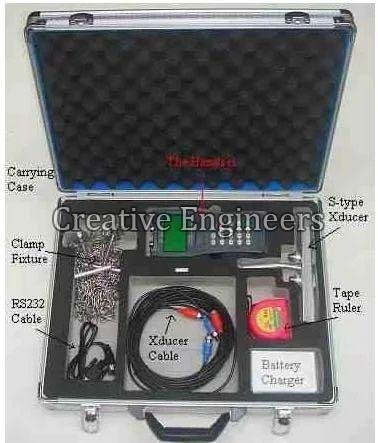

Ultrasonic Flow Meter & Pressure Differential Meter Product OverviewPORTABLE AND FIX TYPE ULTRA SONIC FLOW METER The TUF – 2000H Handled Clamp-on Ultrasonic flow meter is of the most powerful flow meters available for liquid measurement Utilization of our proprietary Ultrasonic Transit-Time measurement and signal quality tracking technologies allow accurate flow measurement of the liquid flow rate from outside of a pipe. The TUF – 2000H flow meters carefully designed so that it is very compact and easy to use. A user can use one hand to hold as well as operate the flow meter main unit. The user interface is self explanatory and very easy to follw. Besides, the unique clamp on fixture design makes he non-intrusive nature of the clamp on technique, there is no pressure drop no moving parts, no leaks and no contamination. Range: DN 15 MM-DN 4500 MM
APPLICATION
- The TUF-2000H Flow meter is ideal for flow surveys and closed pipe applications where non-invasive measurement of liquids is required. Benefited from our advanced digital signal processing technology, the handled flow meter works reliably in both clean and opaque liquid flow. Examples of applications include :
- Power plants (nuclear power plants, thermal & hydropower plants) heat energy boiler feed water.
- Energy consumption supervision and water conservation management.
- Metallurgy and mining application (e.g acid recovery)
- Marine operation and maintenance, pulp and paper.
- Pipeline leak detection, inspection, tracking and collection.
- Water, including hot water, chilled water, city water, sea water etc.
- Sewage and drainage water with small particle quontity.
- Oil, including crude oil, lubricating oil, diesel oil, fuel oil, etc
- Chemicals, including alcohol, acids, etc, solvents, Beverage and food processes.
- HVAC hot and cool water, water / glycol solutions, water and waste treatment.
ORIFICE PLATE FLOW METER
Orifice plate is used for flow rate measuring in pipe systems. With orifice plate, pressure drop is created. Based on the magnitude of pressure drop, flow rate can be calculated. Orifice plate calculator can be used for both liquids and gases. Fluid is considered as in-compressible, so density (rho) and temperature (T) are constant through tube. Also, gas is considered as ideal.
Suitable for liquids, gases and steam applications in line sizes from Dn15 to Dn200 and at pressures up to 100 bars, it combines all the major components needed for an orifice plate installation in one assembly. This eliminates the need for users to design, source and install a separate manifold, transmitter and impulse piping, typically cutting the cost of installation and commissioning
